Asset Highlights
Power System
A fully integrated utility-scale power generation and electrical distribution package ideally suited for industrial manufacturing, data centers, energy-intensive processing, district energy, and independent power applications, featuring:
- ISO Rating: 7965 kWe @ 15 deg. C, Sea Level

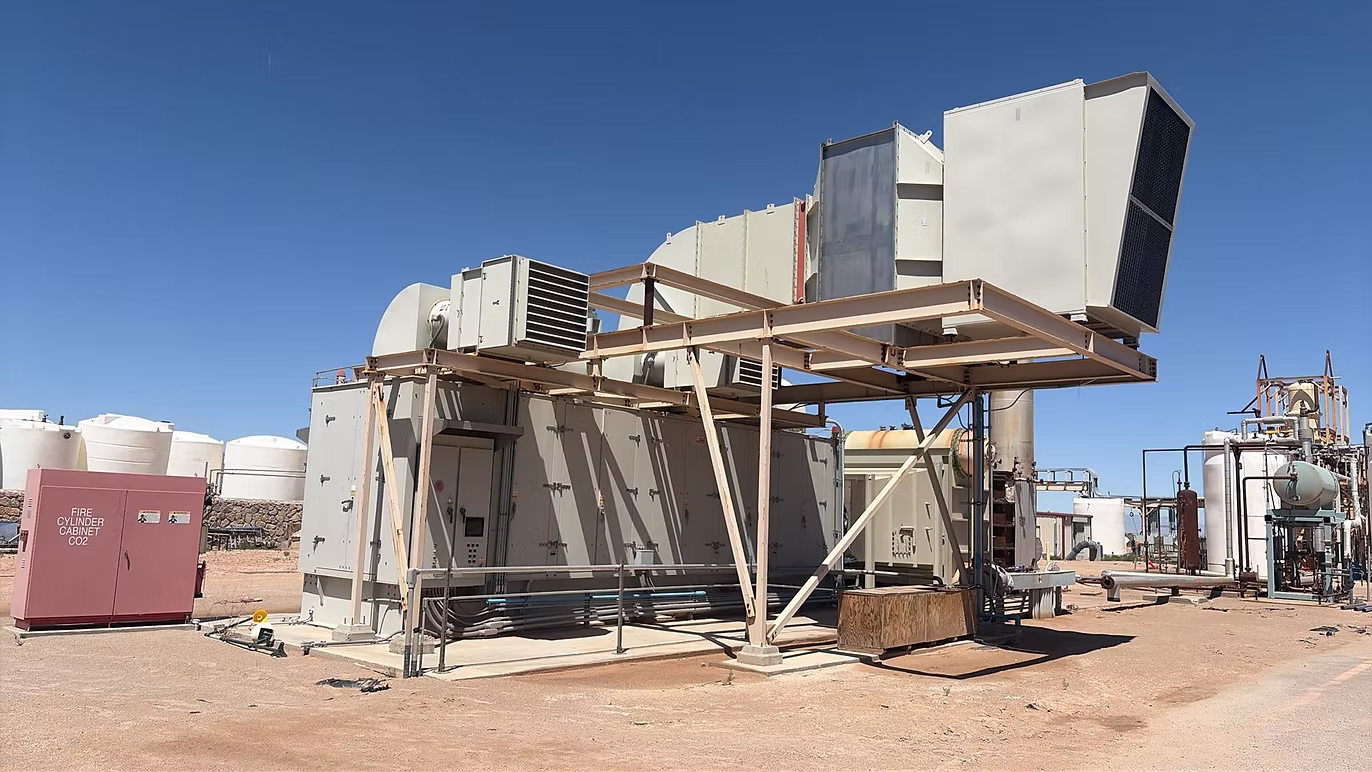

- 6.5 MW (site rating) natural gas-fired turbine generator with Turbotronic controls
- 31,500 lb/hr Deltech Heat Recovery Steam Generator (HRSG) to provide highly efficient combined heat and power (CHP) capability
- 8.4/10.5 MVA main power transformer
- (2) 2,500 kVA pad-mounted transformers with associated medium-voltage switchgear
EDBM Systems

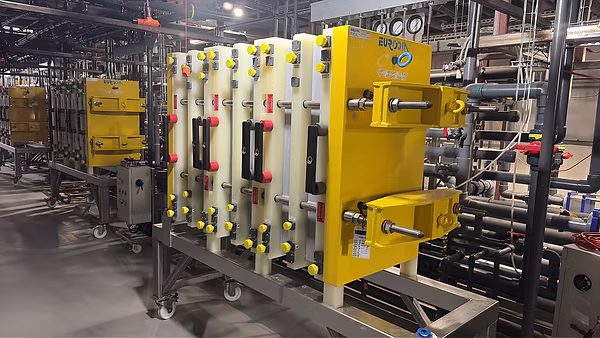

The Electrodialysis Bipolar Membrane (EDBM) Chemical Recovery System uses advanced ion-exchange membrane technology to electrically separate salt solutions into valuable acid and caustic streams without conventional chemical reagents. Features:
- (18) 7-Cell Stacks, EDBM Systems with an estimated capacity of 5–10 m³/hr. and includes 400V, 3-phase power, PLC automation, integrated process controls, and associated support equipment for continuous industrial operation
- (2) water filtration/service skids, 30–50 GPM, dual-tank, Europa control panel
Ultrafiltration System
Designed for high-volume industrial water treatment and desalination, the ultrafiltration system incorporates Siemens instrumentation and robust pressure vessel assemblies to support municipal, industrial, and advanced purification operations. Equipment includes:

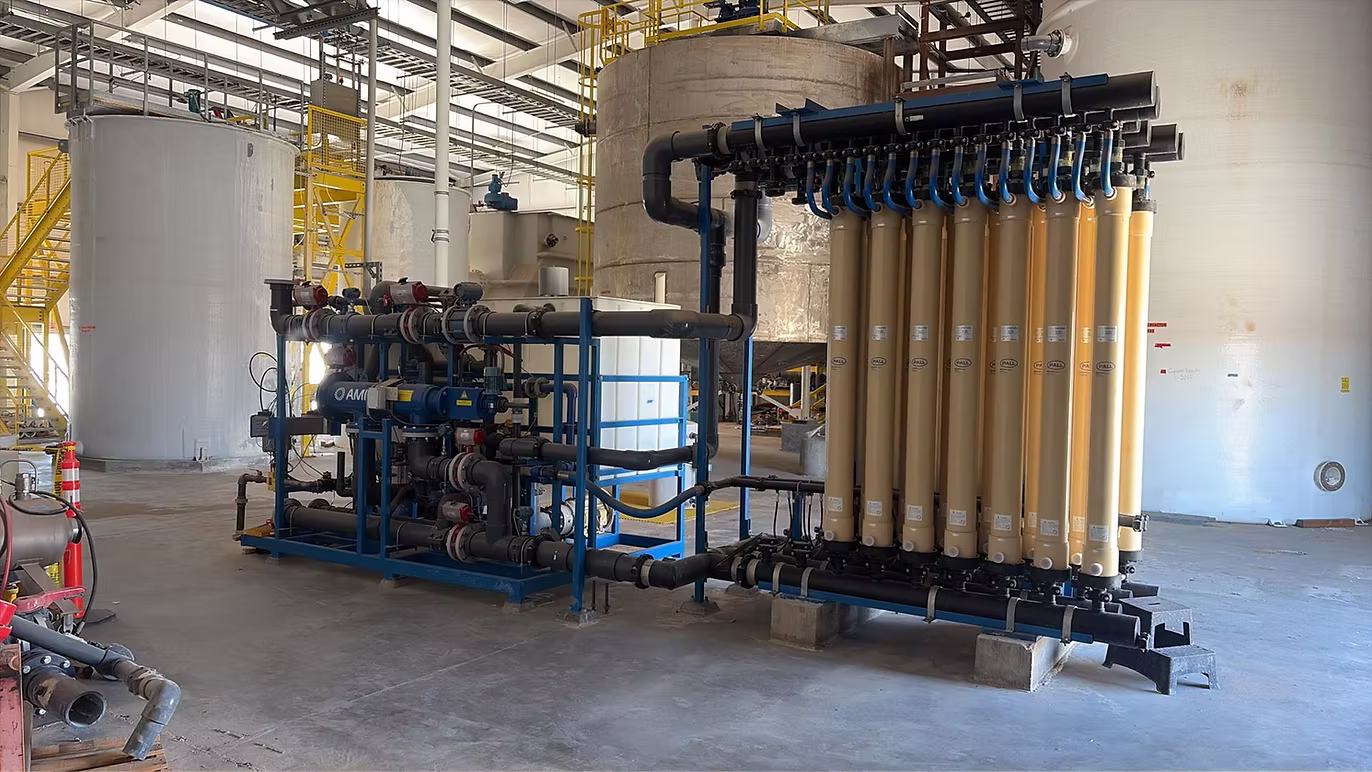

- Large-scale ultrafiltration (UF) system

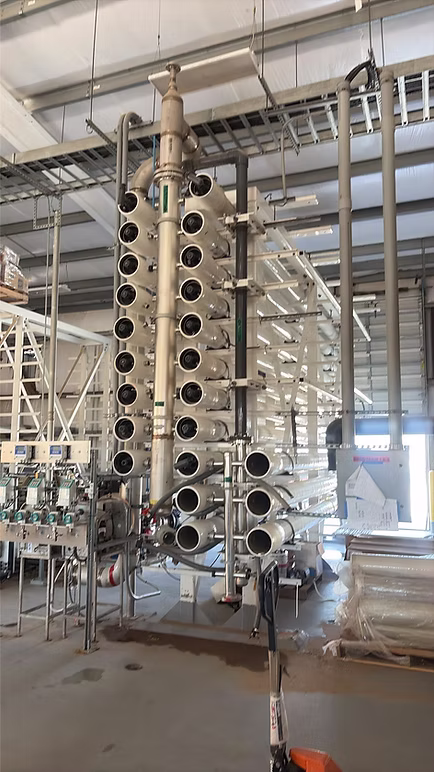

- (156) unused FRP reverse osmosis membrane pressure vessel housings rated from 300 to 1,200 PSI
Electrical Infrastructure (MCC)
Designed for 480V, 3-phase industrial service, the MCC system provides robust power distribution, motor control, and process automation for large-scale continuous manufacturing operations – well suited for relocation, expansion, or integration into other industrial facilities. The system includes:
- (2) motor control centers (MCCs)
- (7) switchboards
- (20) variable frequency drives (VFDs)
- (22) DC drive/MCC cabinets
- (14) dry-type distribution transformers
- (30) high-capacity isolation transformers
Tanks & Chemical Storage
The tank and chemical storage system offers a broad range of specialty vessels, providing comprehensive storage and process handling infrastructure for demanding industrial and water treatment applications. Equipment includes:
- (20) double-wall sodium hydroxide storage tanks
- (2) FRP double-wall chemical storage tanks
- (3) polyethylene vertical storage tanks with integrated pump systems
- (55+) additional polyethylene, polypropylene, fiberglass, and carbon steel process tanks ranging from 200 to over 28,000 gallons
- API 650 stainless steel (2205 SS) storage tank
- magnesium hydroxide storage tank
- large FRP gypsum reactor
Process Equipment & Plant Support
The process equipment and plant support package enables continuous industrial processing, water treatment, and chemical manufacturing operations. Equipment includes:
- High-capacity settling clarifier
- (2) induced fan draft cooling towers
- Ultrafiltration (UF) skid
- (13) plate heat exchangers
- (55+) process pumps
- 600-KW backup diesel generator
- 200 HP natural gas boiler
- (2) rotary screw air compressors
- 75-ton water-cooled chiller
- Integrated air pollution control scrubber system
- High-capacity deaerator
- (2) gypsum dewatering drum filter skids
Raw Materials & Spare Parts
The inventory includes a substantial quantity of new, unused consumables, instrumentation and critical process controls that support ongoing operation, maintenance, and expansion of advanced industrial water treatment and chemical processing facilities. Inventory includes approximately:
- (400) new-in-box reverse osmosis and nanofiltration membranes
- (425) drums of ResinTech ion exchange resin
- a large assortment of Siemens, Flowline, and Krohne process instrumentation, including flow meters, ultrasonic level transmitters, and radar transmitters
